Solar Water Pump Inverter

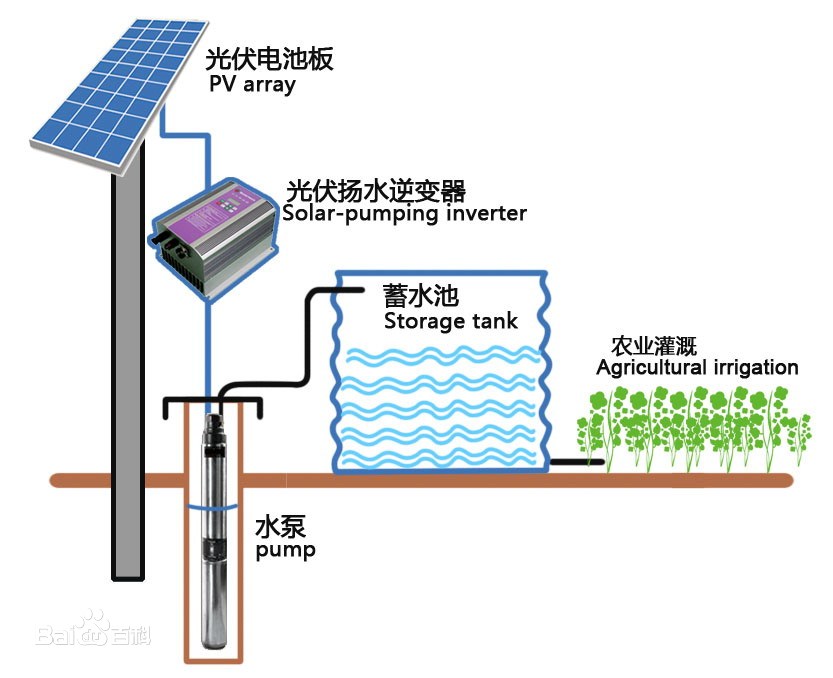

Solar photovoltaic water pump system (photovoltaic water lifting system) structure

The solar photovoltaic water pump system (photovoltaic water lifting system) is mainly composed of three parts: solar panels, solar photovoltaic pump inverters, and water pumps.
Solar panel: solar energy collection and photoelectric conversion device
Solar photovoltaic water pump inverter/controller: convert the electricity generated by solar panels to drive the water pump; control and adjust the water pump system to maximize power
Water pump: conveying liquid
Other parts:
Installation components: placing and fixing solar panels
Combiner box: integrate the input of solar panels and protect the components
Outdoor installation box: IP54 rating, convenient for outdoor installation

Working principle of solar photovoltaic water pump system

The solar panel absorbs solar radiation energy and converts it into electrical energy; the solar photovoltaic water pump inverter adjusts the output power in real time according to the change of sunlight intensity, and drives the water pump to work.

Advantages of solar photovoltaic water pump system

Fully automatic operation without manual duty
Suitable for a wide range of pump types, such as three-phase, single-phase, and DC pumps
Wide input voltage range, suitable for a variety of photovoltaic modules
Modular design, easy to maintain
Use imported components, safe and reliable
Mixed input of solar energy and city electricity, can run all-weather
Wireless remote control
Personalized solutions

Application case of solar photovoltaic water pump system

*Orchard, garden and greenhouse irrigation in remote areas
*Supply water to suburban parks and farms
*Aeration equipment for aquaculture farms such as fish ponds
*Swimming pool water circulation system
*Livestock drinking water system

Configuration Ideas of Solar Photovoltaic Pump System
If the customer has a fixed pump, the configuration can be given according to the load pump; if not, the configuration plan can be understood as follows:
1: Know the depth of the customer's well, the distance between the water level and the water outlet;
2: Understand the required lift (water level to the height of the storage tank;
3: How many cubic meters of water are pumped per day, and working hours.

Warranty Policy:

Thank you for purchasing our solar led light. To provide you with quality products and after-sales service, fully protect your consumer rights is our obligation.
Therefore, our company according to the relevant provisions of the state, the implementation of the following warranty service terms:

(1)    Two year free warranty from the date of sale of the product;

(2)    Product failures caused by man-made reasons, including but not limited to: appearance damage and circuit failure due to crushing, bumping and scratching;
Failure caused by too high working temperature over 65℃; Failure of device due to improper input of voltage causing components get burned or broken.
Function failure due to no sunlight or solar panel not facing south or south by west 5°;
Failure or damage due to corrosion; Natural disasters or improper operation which’s not related to product defect itself.
Failure caused by problems occur after user’s disassembling privately.
 No free repair services if the warranty period is expired.

(3)    When the product is repaired; send back together with the warranty card .
Note: Warranty service does not bear the cost of shipping products.
